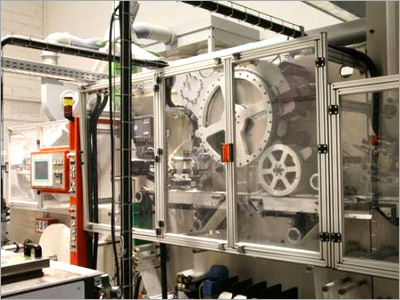

Nursing Pads Converting Line

Nursing Pads Converting Line
Nursing Pads Converting Line
Send Inquiry
Product Code : CPA-001
Product Description

With the changing time, we are adopting the technological advances and trying to offer a broad range of Converting Line For Nursing Pads Machine. It is manufactured by our team using optimum grade materials to meet the quality and design guidelines set by the global authorities. This has applications for making nursing pads. Furthermore, this Converting Line For Nursing Pads Machine is available in distinct models and other specifications at market leading prices.


  • Negligible maintenance
  • Robust construction
  • Energy efficiency
  • 600 pcs/min. (78 mt/lin)
  • Efficiency: 85%
  • Waste: max. 2,5%
  • Direction: Right hand
Pads individually wrapped, bifolded and packed in carton box (content 15 up to 30 pads single line or 30 pads in double line)

Complete Plant Composed Of :-

  • Converting line
  • Folding and individual bag formation
  • Counting unit
  • Packaging in carton box

Main Machine Components :-

  • Core formation
  • Dust sacs filter
  • Unwinder and auto splice for non woven (diameter max 800, width may 180 mm)
  • Unwinder for side elastics (4 threads 2+2 or 1+1)
  • Unwinder and auto splice for ADL (diameter max 800 , width 80 mm)
  • Applicator cut and place ADL
  • Non woven folding module for elastic application
  • Unwinding and automatic change for poly (diameter 800 mm, width max 140 mm)
  • Pad frame pressing
  • Unwinder and auto splicing for label (diameter 600 mm, width 60 mm )
  • Applicator cut and place label (width 60 mm, length 40 mm )
  • Final cut
  • Bifolding
  • Unfolding and auto change for bag folding (diameter 600 ,width 300 mm)
  • Bag forming unit
  • Sealing  and individual bag cut
  • Counting unit
  • Cartonizer
  • Glue system, "Preo" brand
  • Mechanical components: Marzorati/Elbe/HTD/FAG/Sandvik
  • Electrical components: Siemens/Weg/Control Technique/Fife
